professional solar module manufacturer

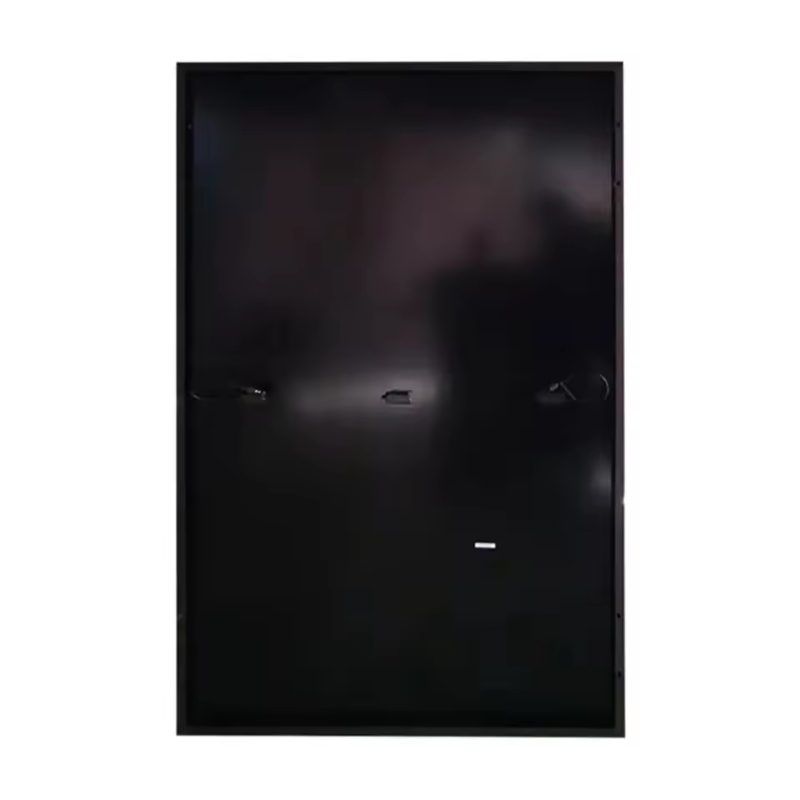

LONGi Hi-MO 5m LR5-54HIB-400M full black Hall Cell PERC Mono Solar panel

LONGi Hi-MO 5m

 LR5-54HIB-400M

·Suitable for distributed projects

·Advanced module technology delivers superior module efficiency

.M10 Gallium-doped Wafer .Integrated Segmented Ribbons .9-busbar Half-cut Cell.



·Excellent outdoor power generation performance

·Aesthetic appearance with all black module design

Specification
Mechanical Data
Brand Name
LONGI
Model Number
LR5-54HIB-410M
Cell size
182mmx182mm
Panel Dimensions
1722*1134*30mm
Warranty
25 Years
Weight
20.8kg
Electrical Characteristics





Model Number
LR5-54HIB-395M
LR5-54HIB-400M
LR5-54HIB-405M
LR5-54HIB-410M
LR5-54HIB-415M
Maximum Power (Pmax/W)
395
400
405
410
415
Open Circuit Voltage (Voc/V)
36.65
36.9
37.15
37.4
37.65
Short Circuit Current (Isc/A)
13.66
13.72
13.78
13.84
13.91
Voltage at Maximum Power (Vmp/V)
30.70
30.94
31.18
31.42
31.66
Current at Maximum Power (Imp/A)
12.87
12.93
12.99
13.05
13.11
Module Efficiency (%)
20.2
20.5
20.7
21.0
21.3
TEMPERATURE RATINGS
WORKING CONDITIONS
NMOT
45℃ ±2℃
Maximum system voltage
1500 V DC
Temperature coefficient of Pmax
-0.34%/℃
Operating temperature
-40℃~+85℃
Temperature coefficient of Voc
-0.265%/℃
Maximum series fuse
25A
Temperature coefficient of Isc
0.05%/℃
Maximum load(snow/wind)
5400 Pa / 2400 Pa



Product Description

At Rongstar Energy we are proud to play an important part in the global solar energy development. We have years-long experience in the distribution and supply chain of solar panels, inverters, energy storage systems, mounting structures, cables and other components for photovoltaics. Utilizing the strength of our parent company - DJS Group, we have more advantages in global sourcing, supply chain,localized warehousing, technical service for global customers.Our company has much experience in solar projects EPC,O&M and solar plants investment. Our expertise are both globally and locally, means we understand the breadth of challenges that solar installers face, from which we can help save the customers’ time and money.
